How to Import a File from SWMM5 toH20MAP SWMM

Subject:  How to Import a File from SWMM5 toH20MAP SWMM



Step 1:  Make a new H2oMAP SWMM Network

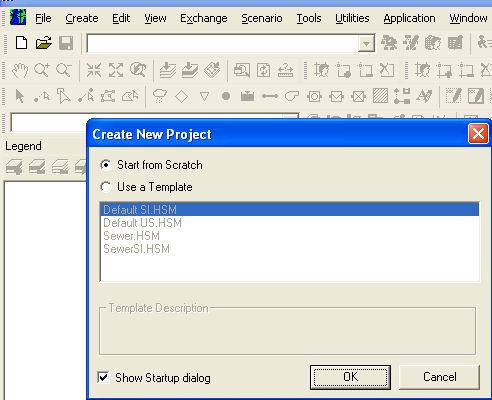

Figure 1.  New Network Dialog.



Step 2:  Use the Exchange Tool / Import EPA SWMM 5

Figure 2. Exchange Tool in H20MAP SWMM



Step 3:  Import your EPA SWMM data file after locating it using the browser.  Click on Import.

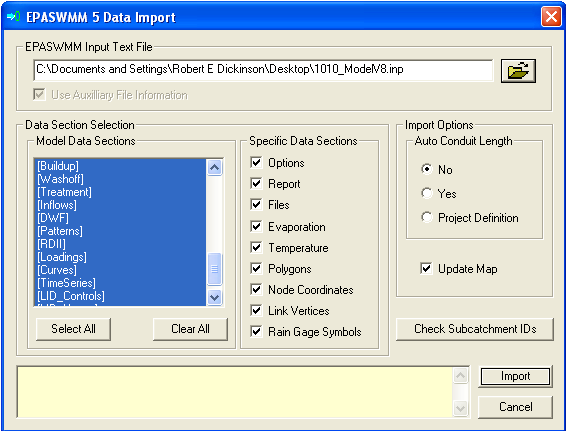

Figure 3.  Import Dialog in H2OMAP SWMM.





Step 4:  Use the Attribute Browser,  DB Editor and Run Manager to see your data and network after import.

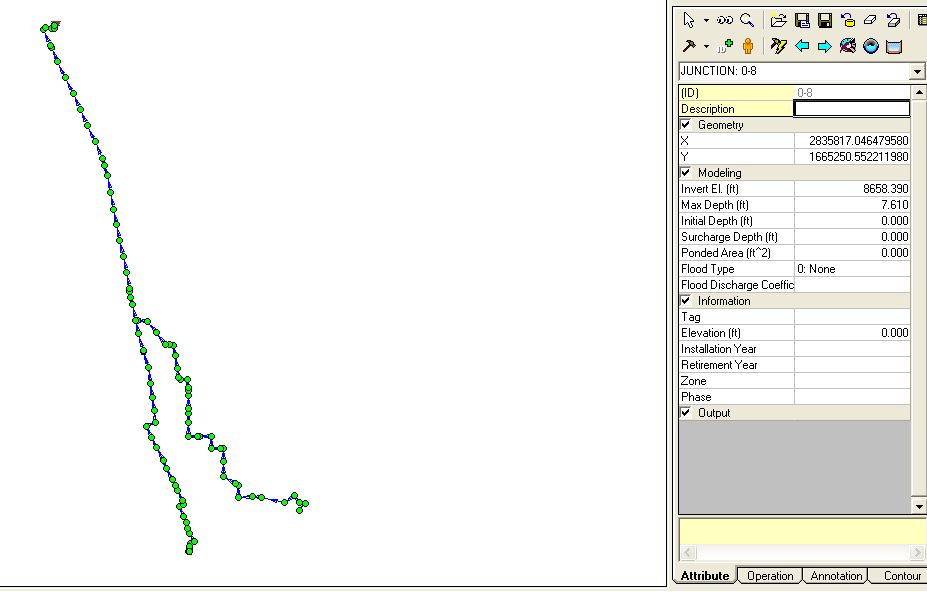

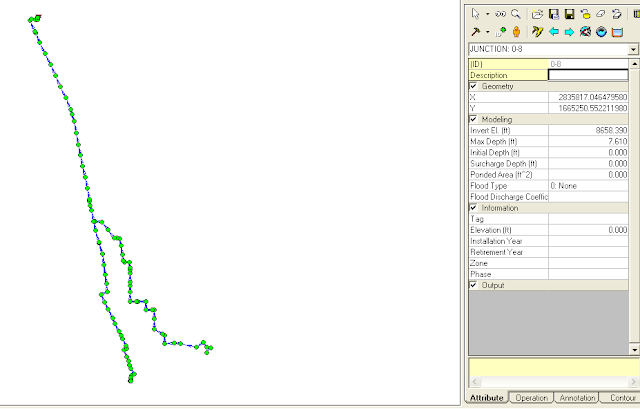

Figure 4.  The imported network in H2oMAP SWMM.
