Types of SWMM 5 Curves

Subject:  Types of SWMM 5 Curves



There are ten types of curves in SWMM 5.0.021 in seven categories accessible through the Data Tab and the Attribute Browser – including four types of Pump Curves:



  1. Storage
  2. Diversion
  3. Rating
  4. Tidal
  5. Control
  6. Shape
  7. Pump
  8. Pump1
  9. Pump2
  10. Pump3
  11. Pump4

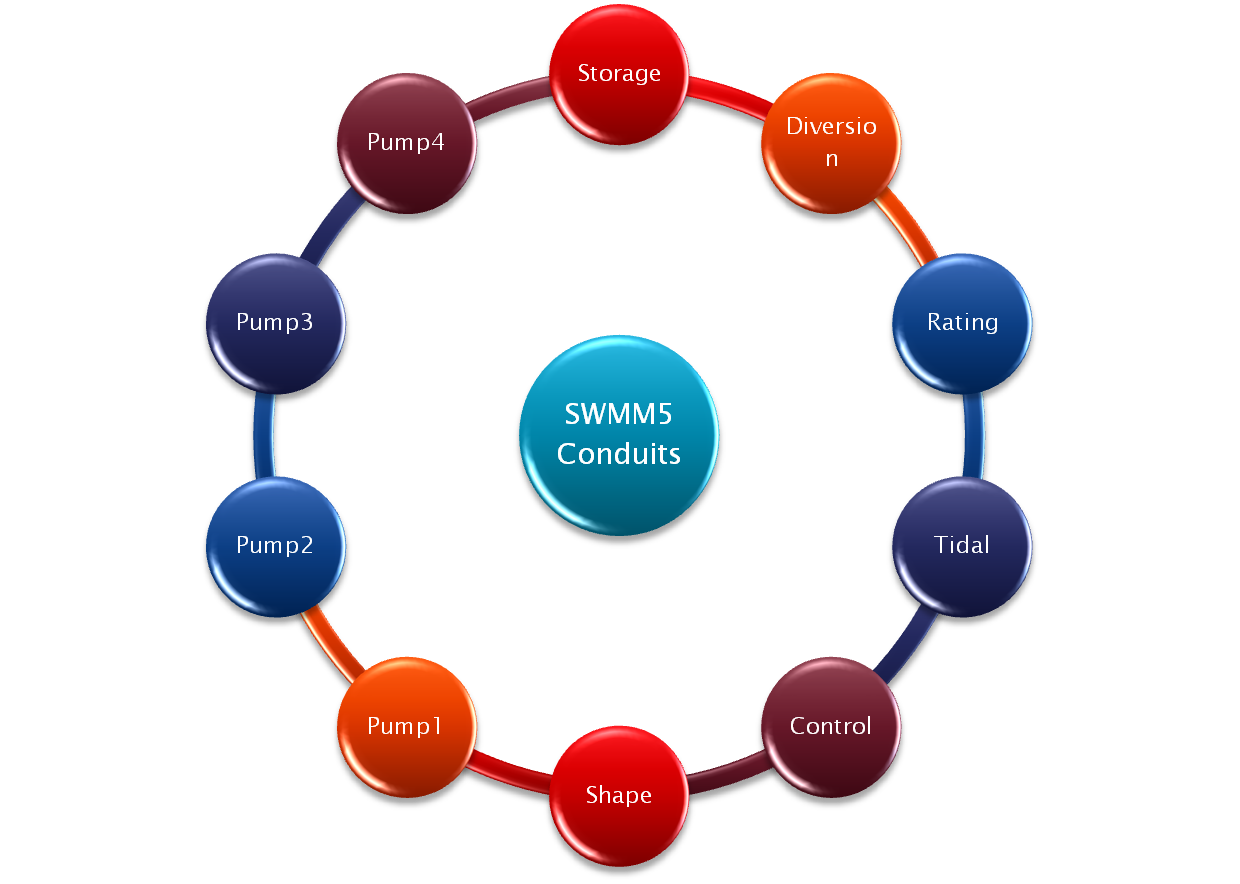

    Figure 1: Curve Types in SWMM 5
